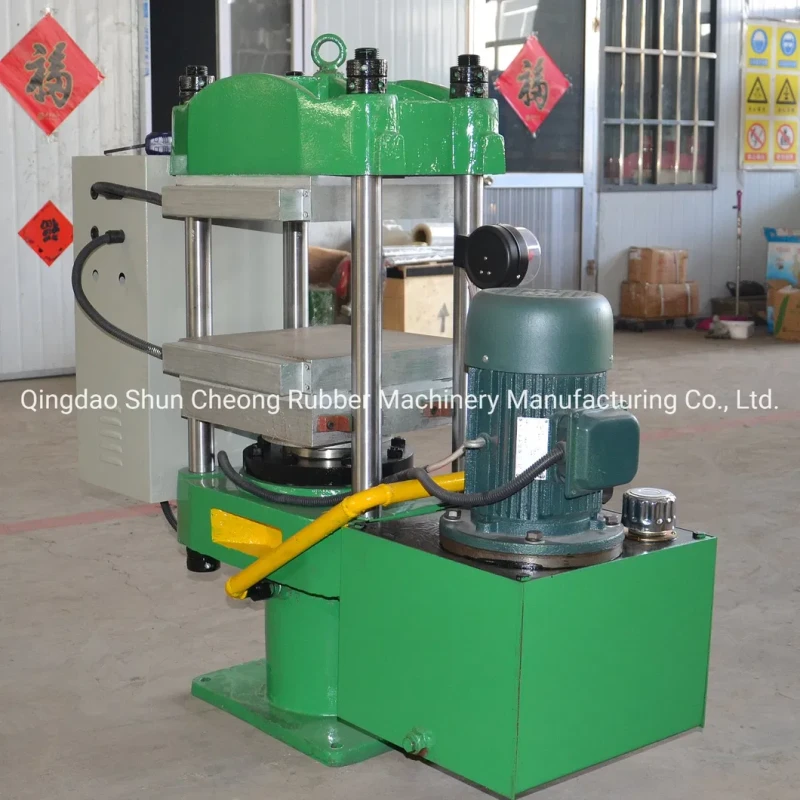

Laboratory Natural Rubber Plate Vulcanizing Press Machine
Product Overview
Automatic horizontal rubber plate vulcanizing press machine designed for laboratory and industrial applications. Model XLB-350x350x1 with CE and ISO certifications.
Technical Specifications
Model: XLB-350*350*1/4
Total Pressure: 0.25 MN
Main Motor Power: 2.2 Kw
Plate Unit Area Pressure: 2.04 MPa
Overall Dimensions: 1400*480*1380 mm
Heating Methods: Electricity, Oil, Steam
Plate Distance: 125 mm
Working Layers: 1-4
Plunger Stroke: 250 mm
Certifications: CE, ISO9001:2015, SGS
Applications
Ideal for vulcanization of various silicone products including silicone bracelets, mobile phone cases, watch straps, and other rubber components.
Key Features
- Frame structure with upward pressing form for efficient operation
- Nodular cast iron oil cylinder for enhanced compressive strength and wear resistance
- Oil-proof rubber seal rings for effective sealing during operation
- Combined oil pump with precise control valve system
- Tubular electric-heating components reduce air pollution
- PLC control method for automated operation
- Customizable design to meet specific production requirements
Product Images
Customizable Hot Plate Vulcanizing Press With PLC Control System
| 1 |
Total proessure |
1.00MN |
100t |
| 2 |
Plate size |
400x400x57mm |
Material:High quality carbon steel |
| 3 |
Quantity of hot plate |
2 Pcs |
|
| 4 |
Working layer |
1 layer |
|
| 5 |
Push and pull mode |
Manual push and pull |
|
| 6 |
Heating mode |
Electrical heating |
|
| 7 |
Heating power |
7.8KW |
650W*6 pcs/plate*2plate |
| 8 |
Heating temperature |
0-200°C
(adjustable)
|
|
| 9 |
temperature control method |
Smart digital display |
Solid state relay with over temperature alarm function |
| 10 |
Plate pressure |
62.5kg/cm² |
|
| 11 |
Daylight |
350mm |
|
| 12 |
Piston stroke |
350mm |
|
| 13 |
Diameter of piston |
285mm |
|
| 14 |
Quantity of main oil cylinder |
1 Set |
Material:QT500-7 |
| 15 |
Number of auxiliary cylinders |
2 Pcs |
|
| 16 |
Diameter of auxiliary cylinders |
50mm |
|
| 17 |
Number of push and pull cylinder |
1 Pcs |
|
| 18 |
Diameter of push and pull cylinder |
50mm |
|
| 19 |
Number of ejector cylinders |
1 Pcs |
|
| 20 |
Diameter of ejector cylinder |
63mm |
|
| 21 |
Ejection stroke |
300mm |
|
| 22 |
Number of ejects |
1 time |
|
| 23 |
Platform lifting speed |
35mm/s |
|
| 24 |
Motor power |
4kw |
|
| 25 |
Maximum operating system pressure |
15.7Mpa |
|
| 26 |
Number/diameter of piller |
4 Pcs /70mm |
45# steel chrome plating |
| 27 |
Control mode: |
PLC automatic control, Can be manually and automatically converted |
PLC touch screen |
| Note |
The machine has the functions of automatic rapid rise, slow mold closing, automatic exhaust, automatic pressure supplementation, vulcanization timing, automatic constant temperature, time alarm, automatic rapid mold opening, automatic push-pull template, automatic mold opening and other functions. |
Product Description
50t Column Rubber Vulcanizing Press, Plate Vulcanizing Press, Vulcanizing Press XLB-500X500X1
Specification:
We have a set of standardized production line, which contains wire peeling machine, rubber cutter, Grinding mill, shredder, screen conveyor, rubber crusher, shaker, banburying mixer, open mill, spiral elevator, Kneader, rubber filter and extruder, vulcanizer, refiner, calendering machine.
We can according to all your requirements for your design is most suitable for your machine !
1. This Rubber Vulcanizing Press is used to manufacture the special seal rings in petroleum mechanical.
2. PLC control Method.
3. Customers can choose according to their needs.
4. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each rubber vulcanizing press can be manufactured to meet customer's individual requests.
Main Usage:
This Rubber Vulcanizing Press is used for all kinds of vulcanizing mould, rubber and plastic.
This Rubber Vulcanizing Press can be using in petroleum industry to produce sealing parts.
Quality Assurance
- Every component undergoes strict quality inspection before storage
- All products undergo overload trial running before shipment
- Plate Vulcanizing Press tested for 24 hours under 1.25 times rated working pressure
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Comprehensive technical support and maintenance services
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. With ISO9001:2015, CE, and SGS certifications, we serve global markets including tire manufacturing, rubber conveyor belt production, and waste tire recycling.
Our Services
- Custom machine design and engineering drawings
- Production progress tracking with regular photo updates
- Complete documentation including installation drawings and user guides
- Overseas engineer service and operator training
- Comprehensive after-sales support and technical assistance
